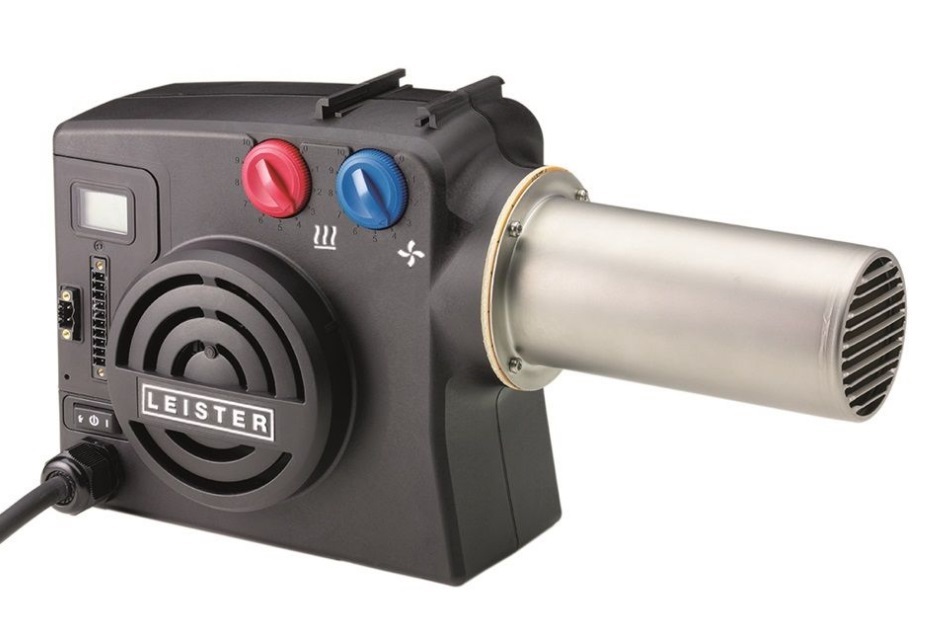

LEISTER HOTWIND SYSTEM Hot Air Blower 230v 3680W

by Jamie Bullock · Published 11th July 2023 · Updated 11th July 2023

LEISTER’s HOTWIND SYSTEM 230v 3680W is impressive with its’s wide range of applications suitable for industrial heat processes such as shrinking packaging, sterilising tools or even smoothing and shining for a gloss finish on manufactured goods. This standalone heater is ideal for fast paced production lines; its ‘Plug in and Go’ operation is designed to deliver an immediate and cost-effective solution where setting up process heat is needed in the shortest amount of time. This way production demands can be made easily controllable and more manageable in the workplace.

Email Signatur TRIAC ST ENG

The HOTWIND has the highest power output in the SYSTEM range and is a user-friendly product with a compact design proving easy to use. One of the main features of the HOTWIND is the digital display which provides more visible control for operators. Its effortless system shows the setpoints and actual values with temperature specifications, ensuring precision is managed throughout the work process and driving a high-quality performance. These temperature settings are easily made adjustable up to 650°c which would come in handy for various types of work including separating or fusing materials. Temperature and air volume can be controlled using analogue potentiometer dials at the side of the HOTWIND, with air volume that can range from 200-900 l/min allowing the operator full control of the blower.

The HOTWIND also benefits from its own integrated remote-control alarm system which helps productions monitor power settings. The HOTWIND SYSTEM is capable of alerting production management of any air volume or heat output fluctuations ensuring safe control in order to maintain quality performance. Cleverly combined and made easily functionable, the blower has an integral operating button for programming purposes made essential for work that requires specific and steady temperature use.

An innovative feature is its auto cooling factor which protects against the device and element from overheating, creating a safe environment during production process. This would be a great advantage for a busy production facility who are not perhaps as aware of heating malfunctions making LEISTER’s HOTWIND an ideal partner for many types of heat processes. This way your HOTWIND will be fit for continual operation, boasting a long service life with its brushless motor therefore maintaining maximum uptime in production. For greater power output will increase blower speeds, the SYSTEM is the pinnacle of the HOTWIND range.

Developed by LEISTER – the leading name in process heat applications, the HOTWIND is supplied in the UK by Welwyn Tool Group. Welwyn supply the full range of Leister plastic welding and industrial process heat equipment and offers highly competent technical support by their team of dedicated engineers.

For further information and technical advice for equipment in this field, please contact Welwyn Tool Group on 0800 856 0057, email them on info@welwyntoolgroup.com, or visit their website www.welwyntoolgroup.com.

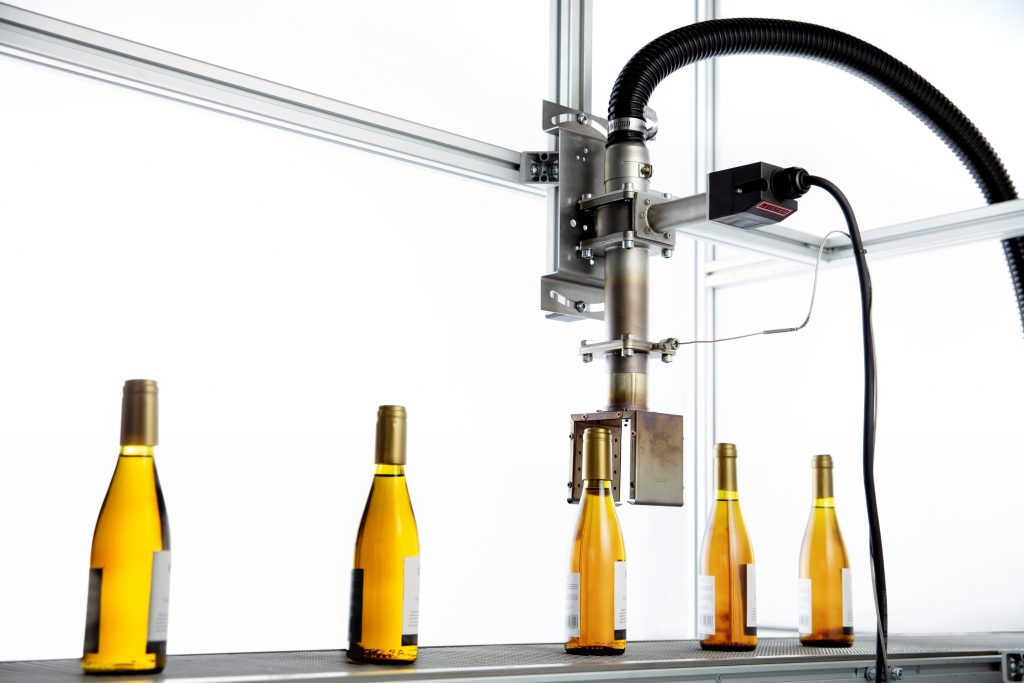

The LHS 210 / 410 Air Heater Series

Compact and powerful

Leister’s new series of compact and powerful LHS 210 / 410 air heaters are suitable for installation in industrial plants where space is limited or tubular air systems such as furnaces for heat curing processes, due to their compact design and ease of integration.

With a choice of eight air heaters with single (SF) or dual flanges (DF), the innovative design allows for easy electrical connection, with connection housing separated from the airstream, which allows unhindered air flows through the air heater with minimal loss in pressure. The connection housing is also protected against overheating, making it possible to work with an air inlet temperature up to 350 degrees Celsius.

The SF-R and DF-R air heaters are equipped with an extension on the housing connection. The ceramic inside this extension ensures that the electrical connection on the tubular air heaters is sealed off and protected from high temperatures or backflowing hot air.

The series SF-R and DF-R (“recirculation”) are designed for many industrial processes where hot air recycling is required. The recirculation abilities of these models’ lower energy consumption which reduces CO2 emissions and saves money.

One of the distinguishing features of the SF and SF-R models is that they are compatible with Leister’s extensive line of nozzles and are suitable for countless industrial applications. For example, the air flow can be extended with a wide slot nozzle or distributed over a larger area. Various shrinking applications within the packaging industry are possible with a screen reflector nozzle.

Whilst the Leister LHS 210 series produce an air volume of 80-250 l/min, the 410 range generates a larger air volume of 160-420 l/min, with all air heaters supplying hot air up to a maximum 650 degrees Celsius.

The LHS 210 / 410 Series – Compact, powerful, and reliable air heaters for space limited industrial processes.

Developed by Leister – the leading name in plastic welding applications, the LHS 210/410 Air Heater series is supplied to the UK by Welwyn Tool Group. Welwyn supply the full range of Leister plastic welding and industrial process heat equipment and offers highly competent technical support by their team of dedicated engineers.

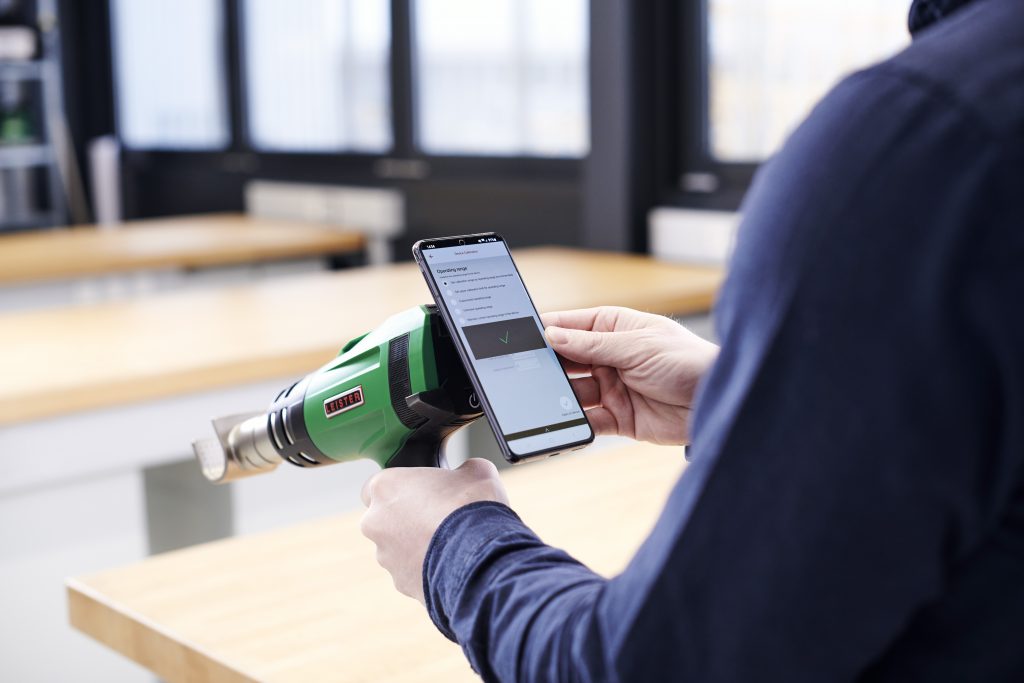

The Solano AComfortable, Safe, Calibrated Digitally networked hot air blower

Leister’s SOLANO AT is a safe, powerful, quiet, and lightweight heat gun for professional plastic welding, heating, shrinking and drying applications, with unique protection features such as configurable restart protection, active cool-down function and easy to install burn protection. A brushless, long-lasting motor makes the Solano AT particularly quiet at less than 65 db.

Thanks to the device calibration function on your Solano AT, features like the energy saving Eco-Mode, which saves up to 40% energy, or calibrating a temperature curve are easy to configure and transferable via the myLeister app through the NFC interface. This function allows you to set the exact hot air temperature needed in the nozzle with assurance that the temperature matches the display, ensuring gentle processing and superior processed products.

The read/write function of the myLeister app allows settings to be transferred easily to an unlimited number of Leister devices. The read function helps you monitor, reading out and checking defined configurations on Leister devices, even when the devices are not connected to the power supply.

With reliability, process stability, precision and reproducibility, Leister’s Solano AT puts manual calibration, process inaccuracies and the tedious creation of documents firmly in the past.

Take advantage of the Configuration Management service in your myLeister app right away to easily calibrate your Solano AT to meet your specific process requirements.

Developed by Leister – the leading name in plastic welding applications, the Solano AT is supplied to the UK by Welwyn Tool Group. Welwyn supply the full range of Leister plastic welding and industrial process heat equipment and offers highly competent technical support by their team of dedicated engineers.
