Gas Process Burners

Lanemark gas burner systems offer users reliable, high efficiency, process heating solutions.

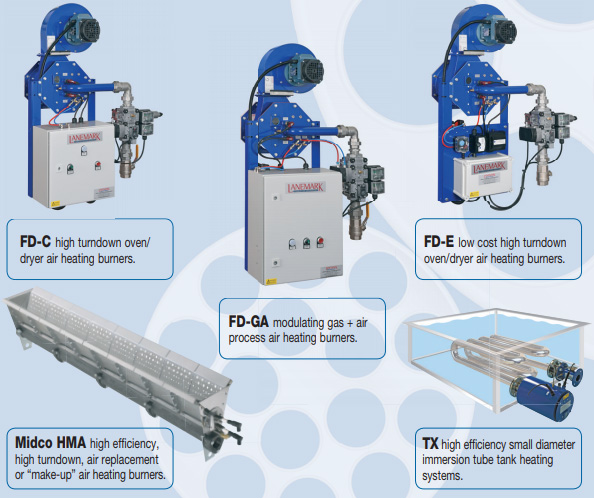

FD Series Packaged Oven/Dryer Burners
• Specia cally designed for process air heating applications in convection ovens and dryers
• High turndown/short flame lengths providing accurate process temperature control
• High efficiency gas + air modulation, gas only modulation and simple high/low control options
• Heat Input Range: 9 kW – 1550 kW

TX Series Gas Fired Process Tank Heating Systems
• High efficiency (80%+) heating of all types of spray and dip process tanks
• Compact high efficiency small diameter immersion tube heat exchangers occupying minimum tank space
• Accurate performance modelling using Lanemark TxCalc design software
• Heat Input Range: 15 kW (1½”) – 1150 kW (8″)

Midco HMA Series Air Replacement or “Make-Up” Air Heating Burners
• Direct fired, high efficiency burner systems, for high volume air heating
applications such as paint spray booths, ovens and dryers.
• Supplied either as Midco burner heads for OEM system integration or as Lanemark DB or FDB complete packaged systems including modulating gas valve trains and controls
• Wide range of firing rates to suit alternative temperature rise and air velocity system requirements
• DbCalc system design software

Lanemark Combustion Engineering Limited
Lanemark House, Whitacre Road, Nuneaton, Warwickshire CV11 6BW United Kingdom
Tel: +44 (0) 24 7635 2000 Fax: +44 (0) 24 7634 1166 E-mail: info@lanemark.com
www.lanemark.com
