Labfacility

Labfacility have launched a NEW online purchasing website featuring our full range of Temperature Sensors, Thermocouple Connectors, Thermocouple Cables and associated Temperature Instrumentation – Please visit www.labfacility.com for immediate despatch from stock worldwide .

Temperature Sensors

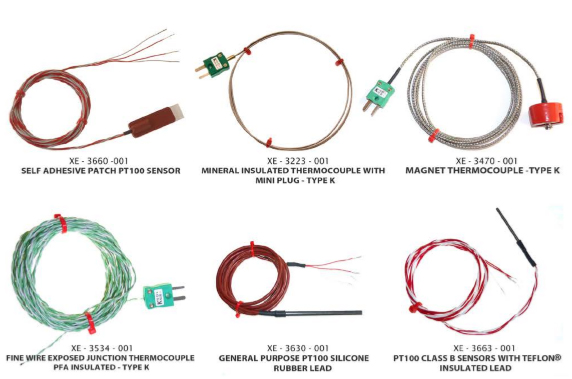

Labfacility are the UK’s leading manufacturer of Thermocouple and PRT sensors, made in our South Yorkshire site. Standard configurations are offered in all of the widely used calibrations, type J,K,T,E,N,R,S and B.. Depending on the choice of sensor type and sheath materials, temperature ratings of up to 1750oC are available with single or duplex elements.

The comprehensive stock of mineral insulated thermocouples features 0.5mm sheath diameter versions in addition to 1.0mm, 1.5mm, 3.0mm and 6.0mm. The 0.5mm diameter thermocouples combine low thermal mass and fast response to temperature changes with durable construction; they are highly flexible and their use minimizes process intrusion.

Mineral insulated PRT sensors are available in a range of diameters and configurations to meet the need for high accuracy, high stability, sheath flexibility and robust construction.
Resistance

Resistance Thermometer Sensing Resistors

Labfacility offers a range of high quality Pt100 and Pt1000 sensing resistors in wirewound and thin-film types. The range includes surface mount versions and glass encapsulated types for those applications requiring the highest stability and hermetic sealing.

All Pt100 sensors comply with IEC751 and, depending on construction, are available in Class A, B and 1/3, 1/5 and 1/10 DIN tolerances. Dimensions range from sub-miniature to 50mm length to suit any application and optional extended terminations are available to order.

Probe Installation Fittings Labfacility also manufactures a wide range of components and fittings for sensor installation and manufacture at our West Sussex site. These include pot seals for mineral insulated thermocouples, bayonet caps and adaptors and closed end protection tubes.

Additional components include compression glands, melt bolts, thermowells and a wide range of terminal heads.
Labfacility is the UK’s leading manufacturer of Temperature Sensors , Thermocouple Connectors and associated Temperature Instrumentation and stockists of Thermocouple Cables.

The Company has been trading for 45 years, is ISO 9001 accredited, employs 70 staff over two UK sites – West Sussex and South Yorkshire and exports to over 85 countries. In addition to the stocked items , Labfacility also offers bespoke Temperature Sensors.

sales@labfacility.com Sales Tel: +44(0)1243 871280 www.labfacility.com
