Top class sensor solutions for the packaging industry directly from the specialist



As one of the leading manufacturers and solution providers in electrical automation, Leuze electronic is among the innovation leaders in the optical sensor industry worldwide. For more than 50 years, the company has been developing and producing innovative and efficient sensor solutions for the packaging industry among others. The product range includes switching and measuring sensors, identification systems, solutions for image processing and data transmission as well as components and systems for safety at work.

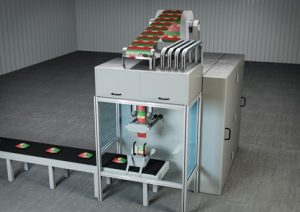

Bag packaging of foodstuffs and bulk material
DCR 200i – Reading codes was never quicker and easier

The DCR 200i from Leuze electronic is a new code reader for the fast decoding of 1D, stacked and 2D codes and has been developed for equipment used in packaging systems, automation, robotics and production (ARP). Its surprisingly simple handling ensures a significant saving of time during commissioning and when changing devices. Furthermore, the DCR 200i impresses with its extremely high reading performance. To ensure flexible product control and complete product traceability, predominantly image-based identification systems are today used for reading the codes on packaging in the pharmaceutical, food and beverage industry as well as on production lines in the ARP industry. Here, fast reading performance, high functional reliability and availability as well as easy operation and maintenance are particularly relevant for system manufacturers and end customers. The new DCR 200i from Leuze electronic is a camera-based code reader which is specifically tailored to this task. It reliably detects and identifies bar codes, stacked codes and Data Matrix codes and checks them for readability, completeness and plausibility, thereby ensuring the traceability of foodstuffs, beverages, pharmaceutical and cosmetic products as well as all types of non-food articles. Owing to its compact design, its fastening concept and its easy handling, the  DCR 200i can be integrated simply and quickly in a wide range of different applications. This applies to its mechanical installation as well as its commissioning and configuration.



DCR 200i together with a specially developed app are the perfect combination

The code readers of the DCR 200i series are operated and configured comfortably using the graphical user interface of the integrated Leuze electronic webConfig tool via an Ethernet interface. The integrated web server renders an external program unnecessary. A special feature is the configuration wizard which allows the user to set up the DCR200i in just three minutes. For the majority of all application types, however, the teach function using the two buttons on the control panel of the DCR 200i in combination with a smartphone app developed by Leuze electronic is sufficient for configuration. With this so-called “easyhandling” concept, ‘the sensor people’  have made operation of the code reader considerably easier and therefore significantly faster. The DCR 200i code readers also demonstrate a particularly high reading performance with speeds of up to 6 m/s. The fast imager and the powerful integrated LED illumination as well as the high resolution in combination with an extremely high depth of field ensure reliable decoding even in the case of fast processes and high object speeds. This makes processes especially in highly dynamic packaging tasks more reliable and in many cases also allows applications to be accelerated.



Modular adaptability of reading tasks

To allow adaptation to a multitude of different reading tasks, the DCR 200i code readers offer extensive device configuration options via the control buttons, configuration codes or software. In addition, LEDs on the device provide information on the reading quality of the taught codes. Optimum adaptation to applications, however, starts with the modular structure of the DCR 200i code readers and ensures that even the most difficult codes can be read. The selectable optics variants High Density (N optics), Medium Density (M optics) and Low Density (F optics) cover reading distances of approx. 40 to 360 millimeters. The housing hood can easily be replaced for specific requirements, e.g. if a plastic protective screen is needed in the food industry instead of the usual glass screen or if specific operational conditions require a polarization filter. So-called diffusor foils for the screen on the housing hood are also available for reducing interfering reflections. The code readers of the DCR 200i series are operated as stand-alone devices with an individual IP address in an Ethernet star topology. In addition to the integrated RS 232, RS 422 and Ethernet process interfaces together with XML communication, a modular connection unit MA 2xxi from the Leuze electronic accessory range is also available to enable connection to other fieldbus systems such as PROFIBUS, PROFINET, EtherCAT etc. Four freely programmable switching inputs/outputs are provided for the activation or signaling of states.





Figures and captions

: Thanks to its compact housing design, the DCR 200i has low installation space requirements.

: Thanks to its compact housing design, the DCR 200i has low installation space requirements.

Configuration made easy – using 2 buttons on the device and the corresponding app on a smartphone.

Configuration made easy – using 2 buttons on the device and the corresponding app on a smartphone.

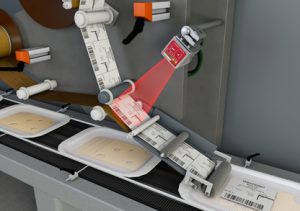

Label inspection in the food packaging industry

Label inspection in the food packaging industry

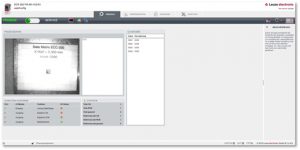

With the help of the configuration wizard, the DCR 200i is ready for operation in just a few minutes.

With the help of the configuration wizard, the DCR 200i is ready for operation in just a few minutes.

The easy-to-use user interface enables simple further processing.

The easy-to-use user interface enables simple further processing.

Smart Sensor Business

Smarter Product Usability

The new DCR 200i code reader demonstrates high Product Usability, i.e. the usability on which Leuze electronic consistently focuses for all its new product developments. Usability includes easy mounting and alignment, as well as user-friendly integration of sensors in existing fieldbus systems and simple configuration.

Smarter Application Know-how

Whoever can do it all, can do nothing right. Therefore, Leuze electronic’s center of attention is on selected focus industries and applications, such as the packaging industry. Here, Leuze electronic is the expert and offers its clients an extensive product range and holistic solutions from a single source.
Smarter Customer Service

Technical and personal closeness to our customers, as well as skilled handling of queries and tasks, are among our strengths. We continue to develop our services offered and follow new approaches, in order to keep providing the best possible service to our clients, whether on the phone, online or on-site in a personal dialogue.

Leuze electronic stands for Smart Sensor Business

Leuze electronic stands for Smart Sensor Business
